DT 204 Series
DT 204 Series
CE/CB Approved Emergency Light Model DT series
Injection-molded plastic ABS housing
Easy installation and maintenance
Energy-saving LEDs with long operating lifespan of up to 100,000 hours
Over-charged and over-discharged battery protections
Test button to test emergency lighting set in normal operating
Lamp angle adjustment: Adjust the head to fit the building structure
Emergency duration: 12 hours(one lamp) 6 hours (two lamps)
Injection-molded plastic ABS housing
Easy installation and maintenance
Energy-saving LEDs with long operating lifespan of up to 100,000 hours
Over-charged and over-discharged battery protections
Test button to test emergency lighting set in normal operating
Lamp angle adjustment: Adjust the head to fit the building structure
Emergency duration: 12 hours(one lamp) 6 hours (two lamps)
| Items | Units | Parameter | ||||
| Input Voltage | V | AC100-240V | ||||
| Source Type | - | SMD LED 24pcsx0.2 | ||||
| Luminous Flux | lm | 400 | ||||
| Brightness | cd/m2 | >15 | ||||
| Beam Angle | ° | 140 | ||||
| Body Materials | - | ABS | ||||
| Life Time | Hr | 50000 | ||||
| Work Temperature | ℃ | 0~50 | ||||
| Emergency Time | Hr | 12hrs(one lamp)6hrs(two lamps) | ||||
| Consumption Power | W | 4 | ||||
| Battery | - | Lead-Acid 4V2.4A | ||||
| Emergency Convension Time | s | ﹤1 | ||||
| Charge time | Hr | 48 | ||||
| Net Weight/pc (with battery) | g | 750 | ||||

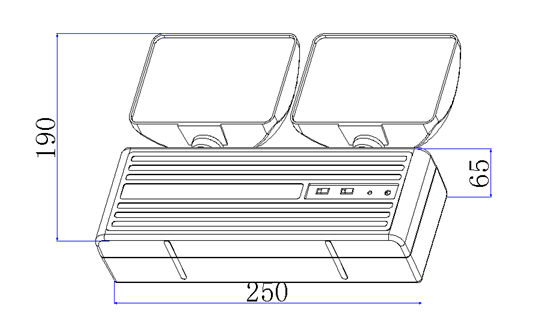

| One Pieces Packing | mm | 260x205x65 | ||||
