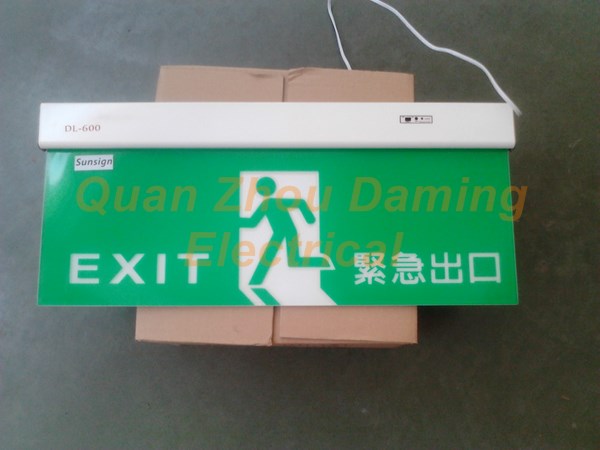

DL-600

CE/CB Approved EXIT SIGNS Model DL series
Aluminum base and Acrylic panel
Fixing: by Wall Mounting or Ceiling hanging
Single or double face
Energy-saving LEDs with long operating lifespan of up to 100,000 hours
Over-charged and over-discharged battery protections
Test button to test emergency lighting set in normal operating
LED indicator to monitor battery operating
The words/signs can be made by engraving or by paste printing

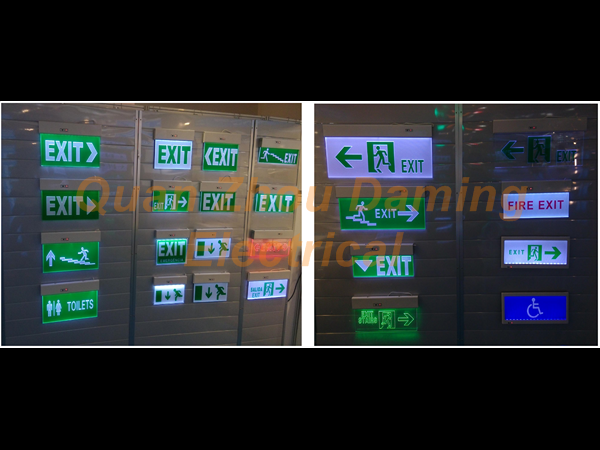

Various of signage are available

Items

Units
Parameter
Input   Voltage
V
100-240VAC
Source  Type
-
SMD LED     33*0.07W
Luminous   Flux
lm
145.2
Display--sided
mm
600*200*5
Display  material
-
Acrylic
LED Color

-
White
Beam   Angle
°
140
Body   Materials
-
Alloy
Life Time

Hr
>20000
Work   Temperature

0~50
Emergency   Time
Hr
>1.5
Consumption   Power
W
4
Battery

-
Ni-mH 3.6V 1600mA
Emergency   Convension Times
1
Charge   time
Hr
48
One   Pieces Packing
mm
660x40x265
Net   Weight/pcs
g
1200

 Please note:   we can do various signs for this model if required
