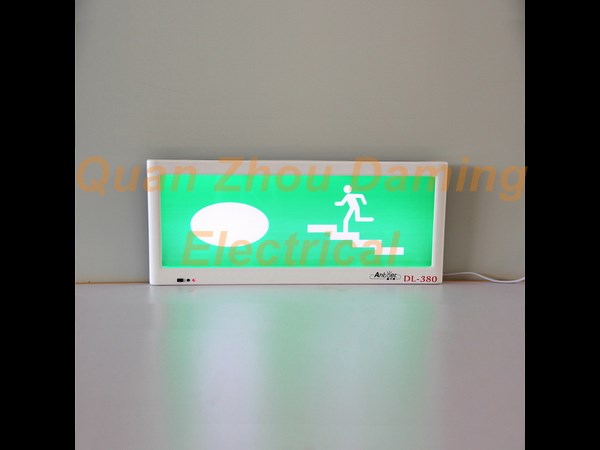

DL-380
DL-380
CE/CB Approved EXIT SIGNS Model DL series
Injection-molded plastic ABS housing
Fixing: by Wall Mounting
Energy-saving LEDs with long operating lifespan of up to 100,000 hours
Over-charged and over-discharged battery protections
Test button to test emergency lighting set in normal operating
LED indicator to monitor battery operating
Various of signage are available
Injection-molded plastic ABS housing
Fixing: by Wall Mounting
Energy-saving LEDs with long operating lifespan of up to 100,000 hours
Over-charged and over-discharged battery protections
Test button to test emergency lighting set in normal operating
LED indicator to monitor battery operating
Various of signage are available
| Items | Units | Parameter | |||
| Input Voltage | V | 100-240VAC | |||
| Source Type | - | SMD LED 18*0.07W | |||
| Luminous Flux | lm | 79.2 | |||
| Display--sided | mm | 360*120*2 | |||
| Display material | - | Acrylic | |||
| LED Color | - | White | |||
| Beam Angle | ° | 140 | |||
| Body Materials | - | Plastic | |||
| Life Time | Hr | >20000 | |||
| Work Temperature | ℃ | 0~50 | |||
| Emergency Time | Hr | >1.5 | |||
| Consumption Power | W | 4 | |||
| Battery | - | Ni-Cd 3.6V 600mAh | |||
| Emergency Convension Time | s | ﹤1 | |||
| Charge time | Hr | 48 | |||
| One Pieces Packing | mm | 405x200x38 | |||
| Net Weight/pcs | g | 755 | |||
