DL-360

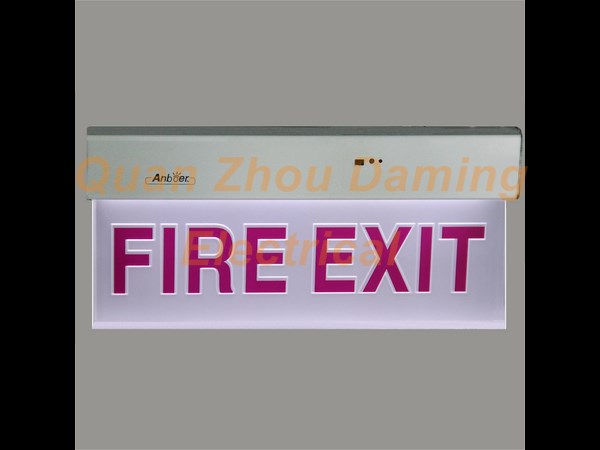

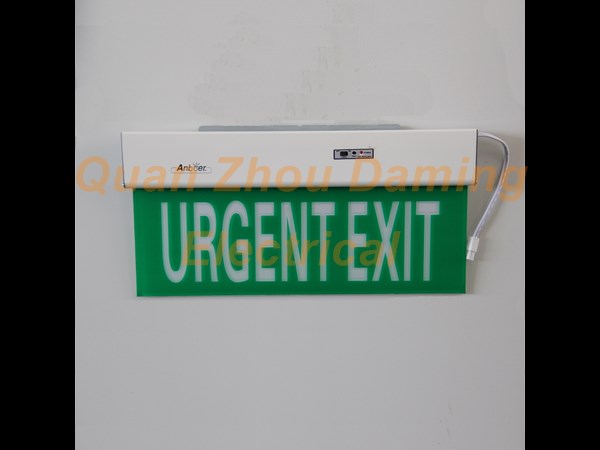

CE/CB Approved EXIT SIGNS Model DL series
Aluminum base and Acrylic panel
Fixing: by Wall Mounting or Ceiling hanging
Single or double face
Energy-saving LEDs with long operating lifespan of up to 100,000 hours
Over-charged and over-discharged battery protections
Test button to test emergency lighting set in normal operating
LED indicator to monitor battery operating
Various of signage are available
Items

Units
Parameter
Input   Voltage
V
100-240VAC
Source  Type
-
SMD LED 18*0.07W
Luminous   Flux
lm
79.2
Display--sided
mm
360*120*5
Display  material
-
Acrylic
LED Color

-
White
Beam   Angle
°
140
Body   Materials
-
Alloy
Life Time

Hr
>20000
Work   Temperature

0~50
Emergency   Time
Hr
>2
Consumption   Power
W
4
Battery

-
Ni-Cd 3.6V 600mA
Emergency   Convension Times
1
Charge   time
Hr
48
One   Pieces Packing
mm
420x185x40
Net   Weight/pcs
g
750

 Please note:   we can do various signs for this model if required
